Stainless steel glazed enclosure for XFP 32 zone panels.

• An attractive flush-mounting glazed stainless steel enclosure ideal for housing a number of C-TEC-manufactured control panels.
• Compatible products include XFP 1-2 loop 32 zone fire panels and Quantec controllers.
• Optional BF359/3CL (Camlock kit) or BF359/3SL (Electromagnetic solenoid lock kit) also available.
• Helps protect control equipment from unauthorised access/tampering
• High quality brushed stainless steel finish.
• Picture shows a BF359/3S enclosure with an XFP 1 Loop 32 Zone panel fitted.



Technical Specifications

Compatibility	Suitable for use with XFP 1-2 Loop 32 Zone Fire Panels; QT601-2 Quantec Controllers; ECU-8NT SigTEL Controllers (without handsets).

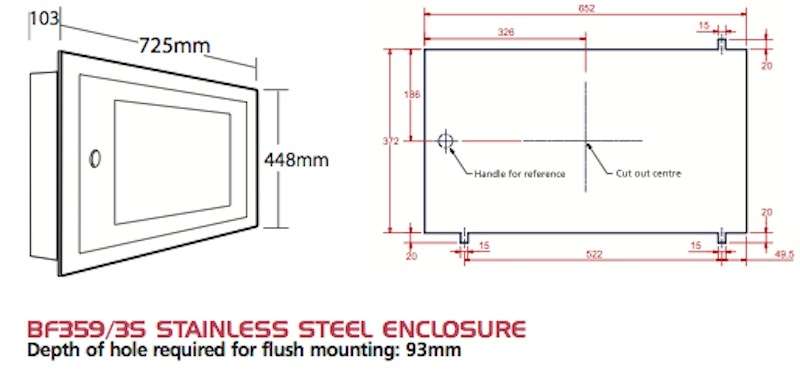

Product dimensions (mm)	725 W x 448 H x 103 D mm (overall dimensions); 650 W x 370 H mm (back box); 725 H x 448 H x 10 D mm (bezel). Flush mount depth for wall-mounting 93 mm.
Construction & finish	Polycarbonate front window; Brushed stainless steel door and bezel; Mild steel back box;
IP Rating	TBC.
Weight	9.3 kg
