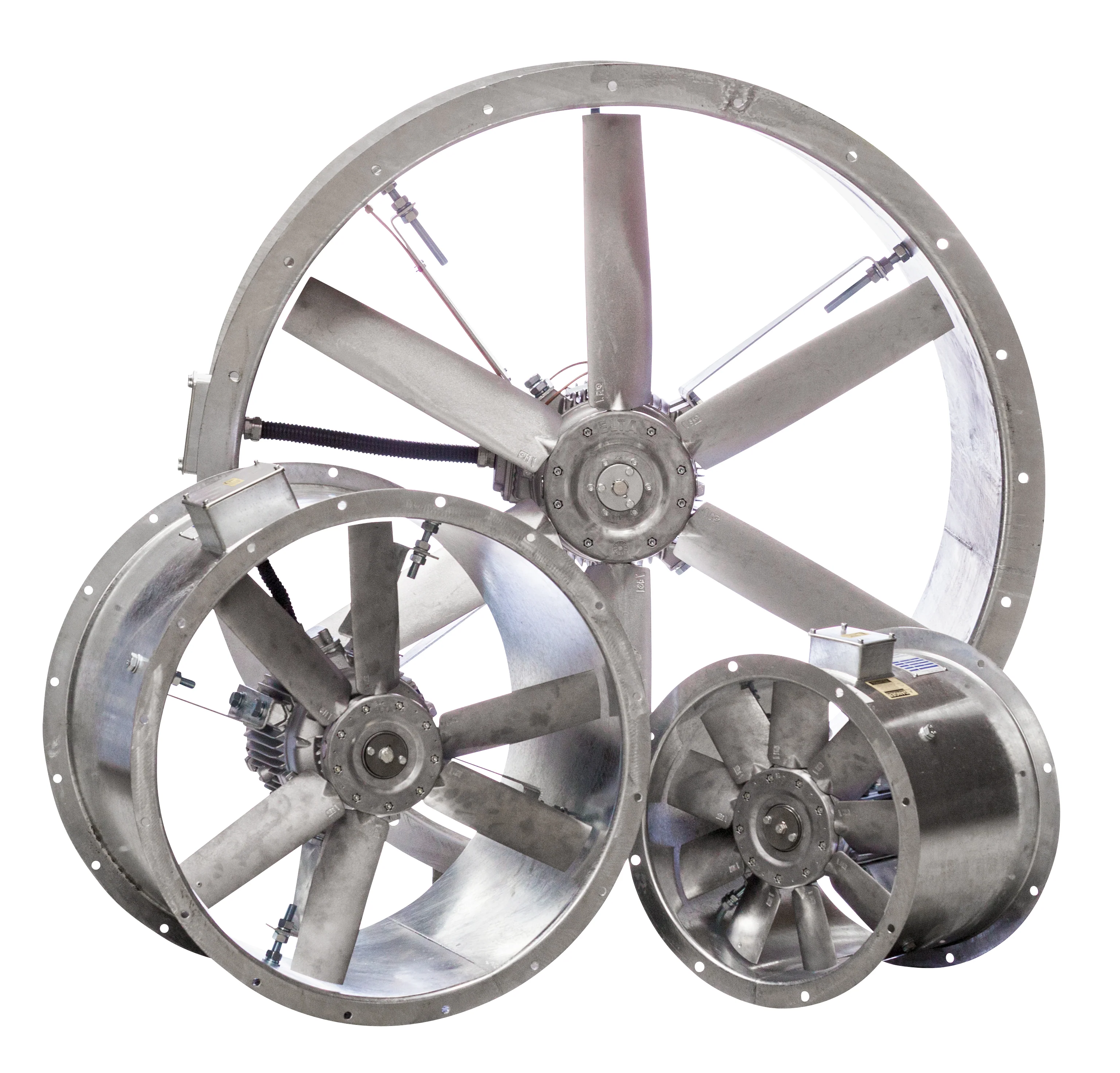

Long Cased Axial fan 630mm

Description: Long Cased Smoke Axial Fan

ACTUAL -
Air Flow: 5.04 m³/s
Static Pressure: 542 Pa
Total Pressure: 699 Pa

FAN DATA-
Diameter: 630 mm
Impeller Type: Axial
Blade Material: Aluminium
Speed: 2880 r/min @50 Hz
Power, Abs: 5.94 kW
Input Power: 6.60 kW
Efficiency Total: 59.4%
SFP: 1.32
Fan Weight: 104.9 kg
Hub: 255 mm
Pitch: 21°
Blades: 3
Form: B
Peak: 5.95 kW
Static: 46.0%

MOTOR DATA (at STP) -
Motor Type: F300 (IE3)
Electrical Supply: 400V 3ph 50Hz
Motor Frame: 132S
Motor Power: 6.60kW (AOM) (5.50kW IEC)
FLC/Start (DOL): 12.24A (AOM) / 89.15A (10.20A FL IEC)
Motor Speed: 2 pole
Motor Efficiency: 90.0%
