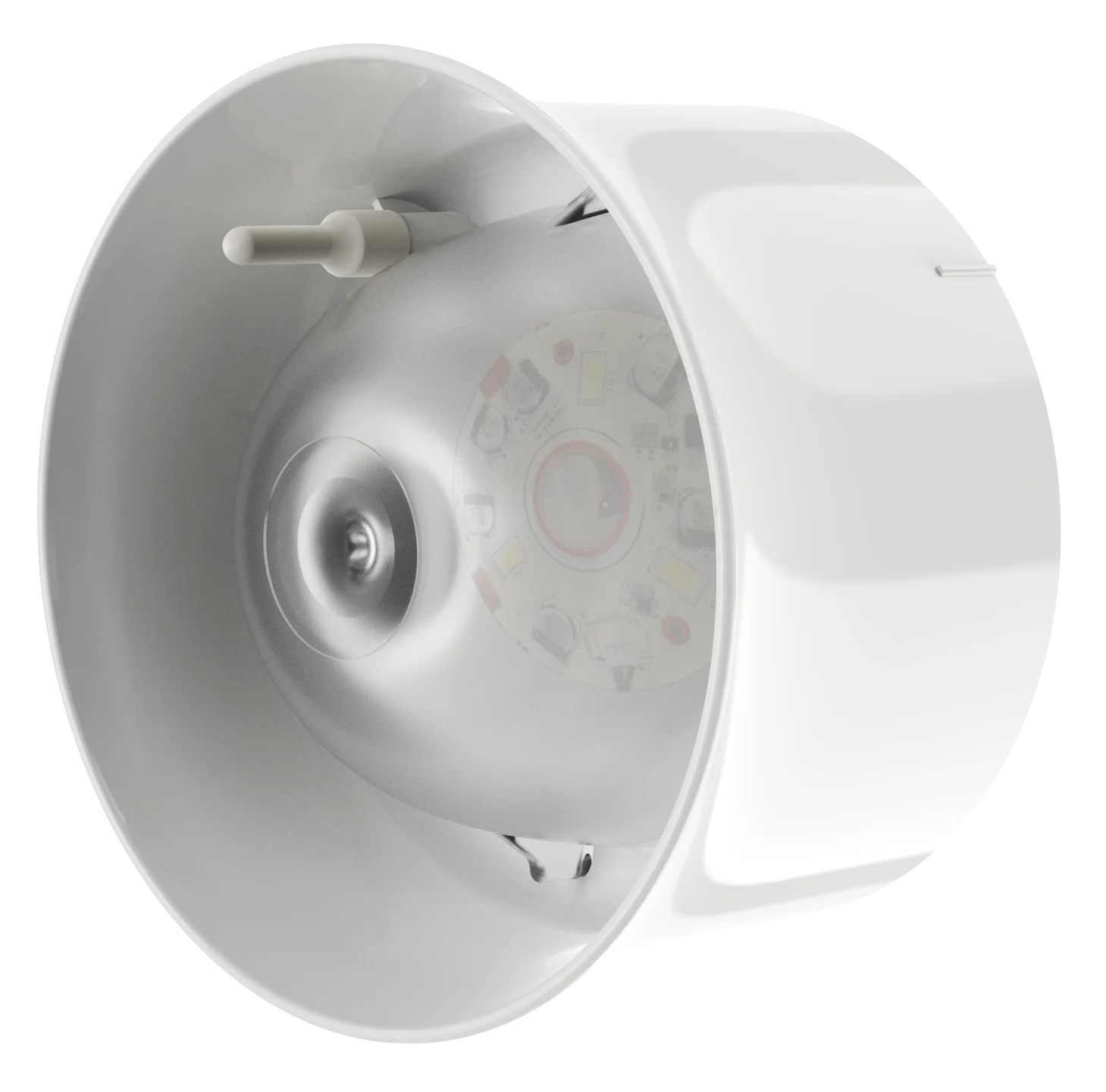

Hochiki Addressable Wall Sounder Beacon

Model CHQ-WSB2(WHT)/RL is an EN54-23 compliant addressable loop powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption

The unit features an integral beacon within the horn utilising high intensity LED technology and is designed to fit to the Standard Base (YBO-R/3(WHT)) or the Isolator Base (YBO-R/SCI(WHT-SNDR))

The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the CHQ-WPK Weatherproofing Kit, which consists of a specialised back box and gasket set

The sounder also incorporates an auto shutdown mode which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.



Specification

• Loop powered
• Single loop address - addressed via the TCH-B200 Hand Held Programmer
• Variable sound output 90 ~ 102 dB(A) (+/-2 dB(A)) output at 1 metre
• High intensity LED technology
• 0.5 or 1Hz flash frequency
• Fits Hochiki standard or isolator base
• Weatherproof kit available
• 51 user-selectable tones (all tones EN54-3 compatible)

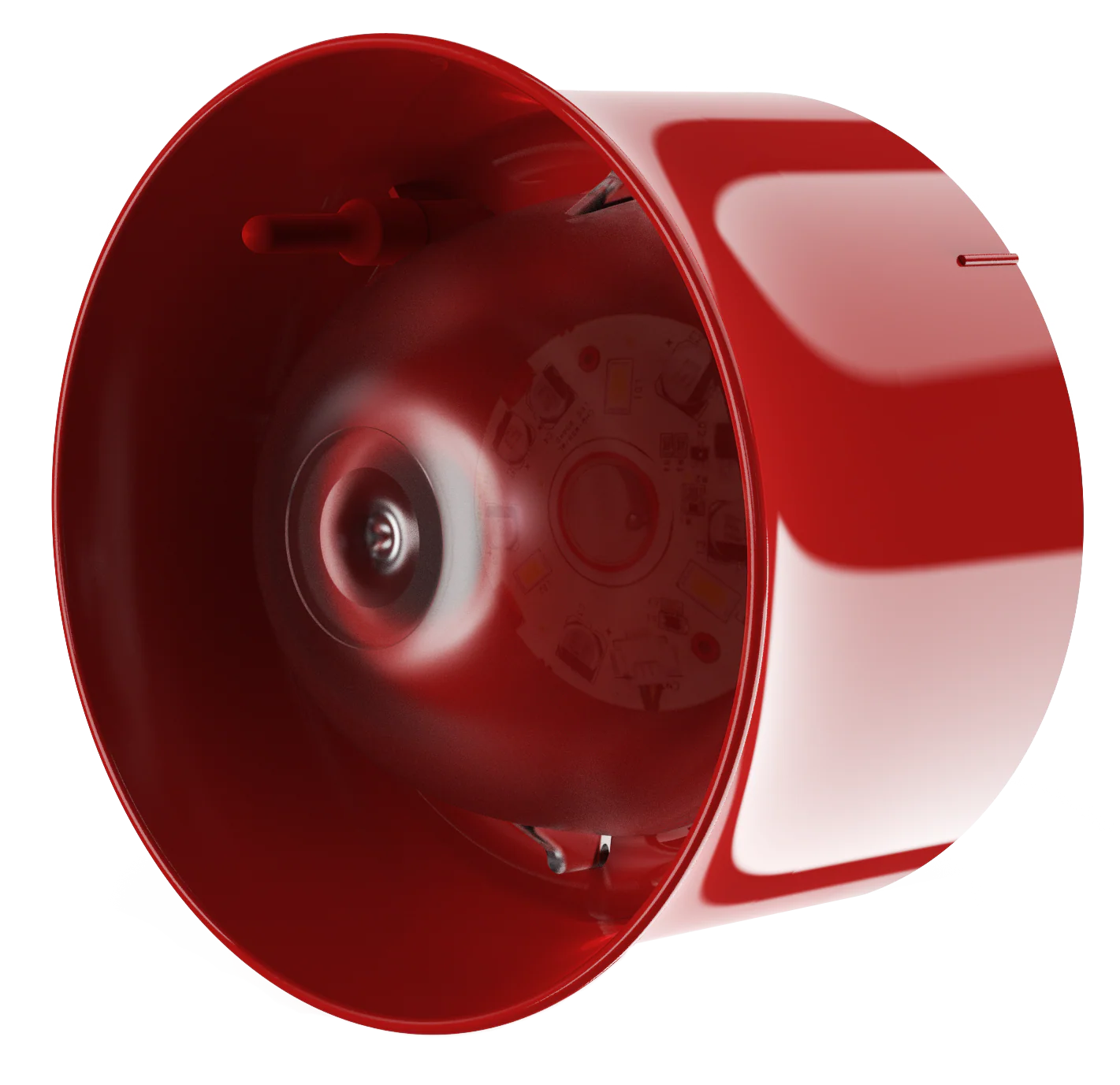

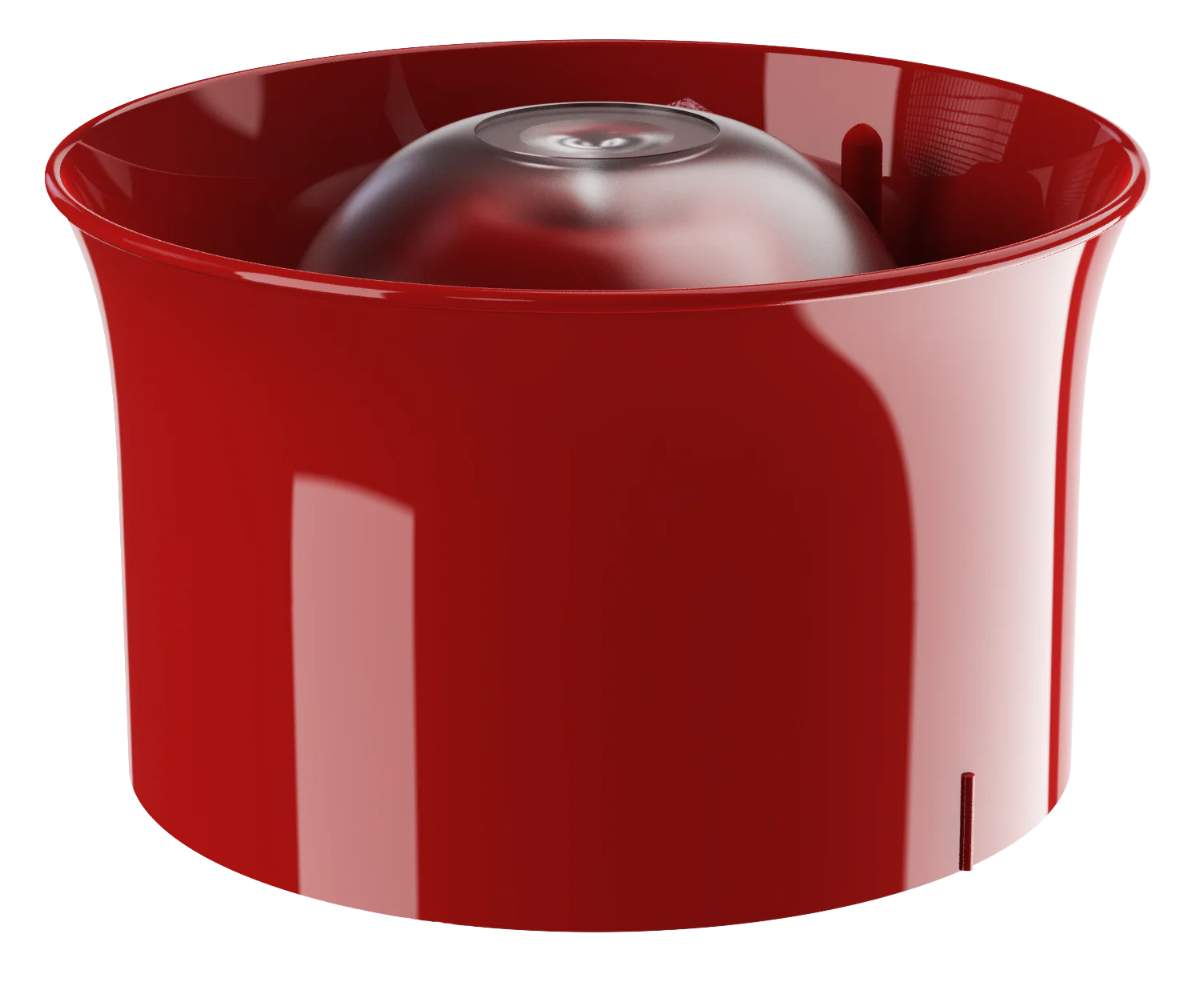

• Also available in red
• Approved by LPCB to EN54-23: 2010 - Category 'O'
