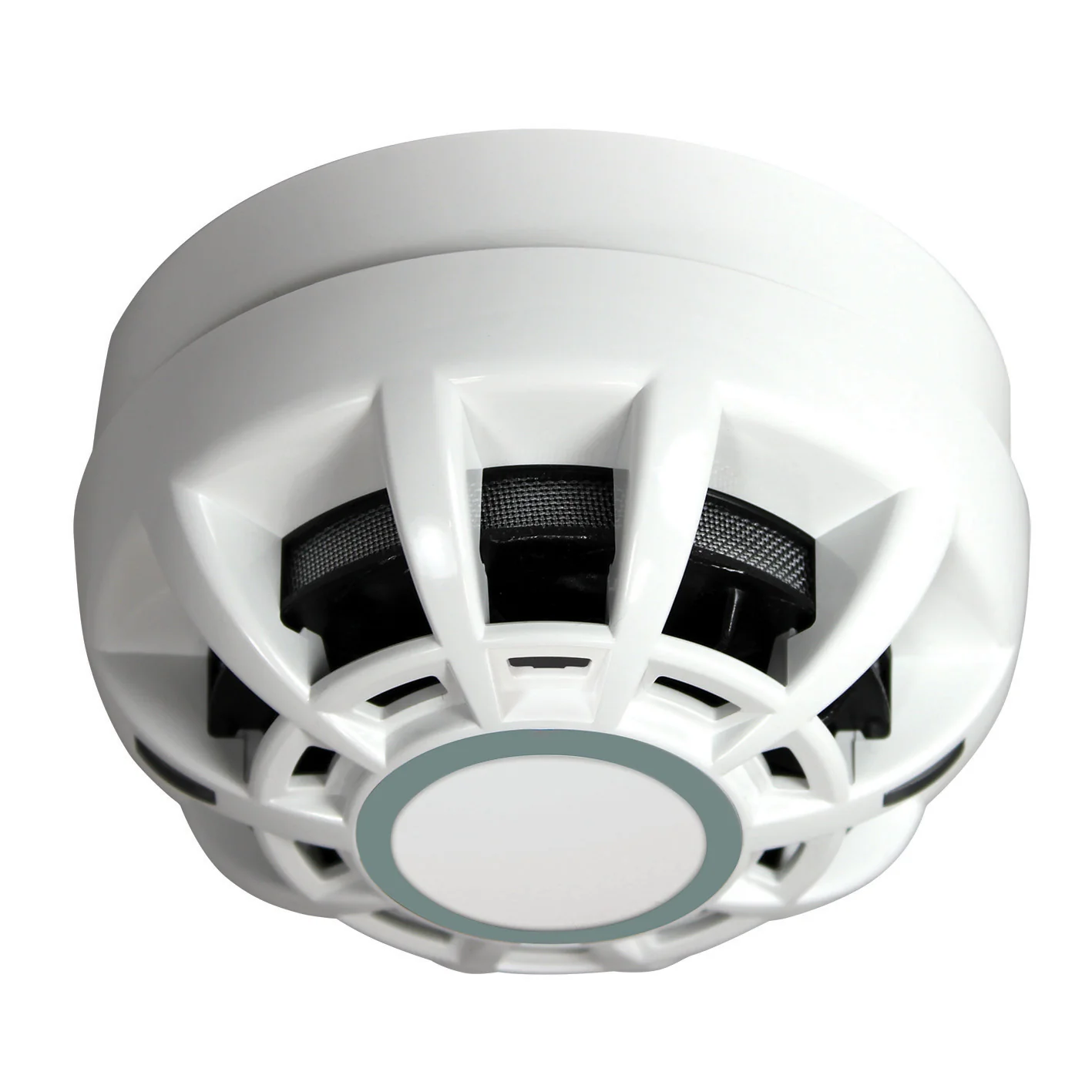

A programmable optical CAST-PRO fire detector designed to detect real fires quickly and reduce false alarms effectively.
Certified to EN54-7, 13 & 17 by Kiwa Telefication.
Compatible with C-TEC’s ZFP and XFP CAST protocol addressable fire panels.
MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms provide incredible tolerance to false alarms whilst enhancing the detection of real fire conditions.
Drift compensation functionality.
Onboard short circuit loop isolator.
Includes two 8mm x 2mm ultra-bright red LED indicating strips.
Two detection modes (normal & high sensitivity).
<1mA alarm current.
570uA typical quiescent current @ 40V DC.
Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.

Technical Specifications

Approvals/certifications	Certified to EN54-13 by Kiwa Telefication., CPR Number 0063- CPR-242190022, Kiwa Telefication certified to EN54-7 & 17
Compatibility	Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels.
Type	Optical smoke detection
Sensitivity	2 Detection Modes (normal or high sensitivity, default is normal)
Supply wiring	2-wire, polarity sensitive.
Supply/operating voltage	22 to 40V DC.
Quiescent current	570uA @ 40V.
Alarm current (Imax at Vmin)	<1mA.
Alarm current (Iavg at Vmin)	<1mA.
Sound pressure level (LAFmax) at Vmax at 1m	N/A.
VAD category & coverage	N/A.
Indicators	2 LED indicator strips emitting red light when in alarm offering 360º visibility. Optional remote LED.
Connections	Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen.
Product dimensions (mm)	105mm diameter x 48mm deep (detector only); 105mm diameter x 65mm deep (detector in base).
IP Rating	IP21C
Weight	118g (not in base); 172g (in base).
Operating conditions/temperature	-10ºC to +50ºC. Max relative humidity: 95% (non-condensing)
Notes	Requires a CA408 CAST base. CA408R relay base also available.
